How To Make Best Settings Nvidia Control Panel RTX 5070

Unlock the full potential of your NVIDIA GeForce RTX 5070 by optimizing the Control Panel settings. This detailed guide explains step-by-step how to achieve the best performance, smooth gameplay, and crystal-clear visuals with the latest NVIDIA drivers and features.

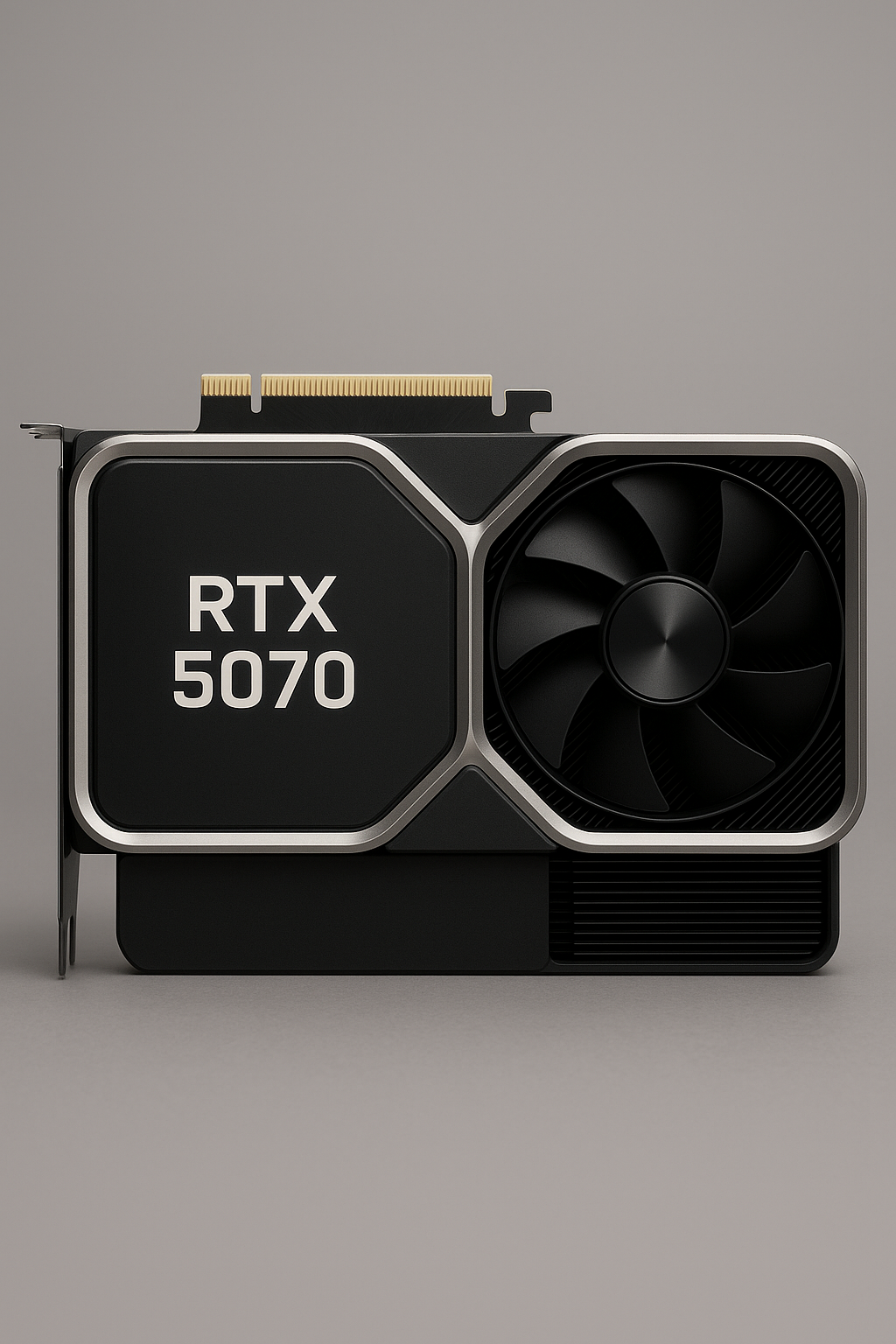

NVIDIA GeForce RTX 5070

The NVIDIA GeForce RTX 5070 is one of the most anticipated GPUs of the 50-series lineup, promising excellent performance in both gaming and productivity tasks. While the card delivers impressive power out of the box, you can take its performance even further by adjusting the right settings in the NVIDIA Control Panel.

Many users rely only on default drivers or GeForce Experience, but the Control Panel provides deeper customization that can maximize frame rates, improve stability, and fine-tune image quality. In this guide, we’ll go through the best NVIDIA Control Panel settings for the RTX 5070 step by step, whether you want to prioritize raw performance for competitive gaming or enhance visuals for immersive single-player experiences.

Why Optimize Nvidia Control Panel Settings?

Optimizing your Control Panel ensures that your GPU resources are allocated efficiently. The RTX 5070 supports cutting-edge features like:

• Ray Tracing & DLSS 3.5 – Real-time lighting and upscaling for smooth gameplay.
• NVIDIA Reflex – Reduced system latency for competitive games.
• G-Sync & Variable Refresh Rate (VRR) – Eliminating screen tearing.
• Resizable BAR – Better data throughput between CPU and GPU.

Without proper configuration, these features may not deliver their full benefits. By tuning the right options, you ensure your RTX 5070 runs cooler, faster, and more consistently.

Steps

1: Open the Nvidia Control Panel

To access the NVIDIA Control Panel:

1. Right-click your desktop.
2. Select NVIDIA Control Panel from the context menu.
3. If it doesn’t appear, update your drivers and reinstall GeForce Experience.

2: Adjust 3D Settings

Global Settings vs Program Settings

• Global Settings affect your entire system.
• Program Settings allow per-game customization.

We’ll first optimize Global Settings for overall performance.

Recommended Global Settings for RTX 5070

• Image Sharpening: On (0.5–0.7 sharpening, 0.17 ignore film grain). Improves clarity without heavy GPU load.
• Ambient Occlusion: Performance. Enhances depth but keeps frames stable.
• Anisotropic Filtering: Application-controlled.
• Antialiasing – FXAA: Off (can cause blur).
• Antialiasing – Mode: Application-controlled.
• Background Application Max Frame Rate: 20 (saves GPU resources when multitasking).
• CUDA – GPUs: All.
• DSR – Factors: Off unless you want downsampling for older games.
• Low Latency Mode: Ultra (for competitive shooters).
• Max Frame Rate: Off (except for heat-sensitive laptops).
• Multi-Frame Sampled AA (MFAA): On.
• OpenGL Rendering GPU: Set to RTX 5070.
• Power Management Mode: Prefer Maximum Performance.
• Preferred Refresh Rate: Highest available.
• Shader Cache Size: Unlimited.
• Texture Filtering – Quality: High Performance.
• Threaded Optimization: On.
• Triple Buffering: Off (unless using V-Sync).
• Vertical Sync (V-Sync): Off globally (let G-Sync handle it).

3: Configure G-Sync & V-Sync

The RTX 5070 shines with high refresh rate monitors.

• Go to Display > Set up G-Sync.
• Enable for fullscreen mode (or fullscreen + windowed if supported).
• In games, keep V-Sync on if you use G-Sync.
• Disable in Control Panel to avoid conflicts.

This eliminates tearing and stutter.

4: Adjust Display Settings

• Change Resolution:
  • Set to your monitor’s native resolution.
  • Refresh rate: Maximum supported (144Hz, 240Hz, or higher).
  • Output color format: RGB.
  • Output dynamic range: Full.
• Adjust Desktop Color Settings:
  • Digital Vibrance: 55–65% (boosts colors).
  • Gamma: 1.0–1.1 depending on preference.

5: Configure PhysX Settings

• Go to Set PhysX Configuration.
• Select GeForce RTX 5070 instead of Auto.
• This ensures games use GPU acceleration instead of CPU fallback.

6: Advanced Features to Enable

• DLSS (Deep Learning Super Sampling) – Activate in supported games for massive FPS boosts.
• NVIDIA Reflex – Turn on in competitive titles to reduce input delay.
• Resizable BAR – Enable in BIOS if supported.
• Background Max Frame Rate – Keeps GPU cool when idle.

7: Optimize for Specific Scenarios

For Competitive Gaming (Esports)

• Low Latency Mode: Ultra.
• Power Mode: Maximum Performance.
• V-Sync: Off.
• G-Sync: On.
• Texture Quality: High Performance.

For Immersive AAA Gaming

• Texture Quality: Quality or High Quality.
• Low Latency Mode: On (not Ultra).
• V-Sync: On (if screen tearing noticeable).
• Ray Tracing + DLSS: Balanced or Quality mode.

8: Keep Drivers Updated

NVIDIA frequently improves performance via Game Ready Drivers. Always update before major game releases. Use GeForce Experience for one-click updates.

9: Use GeForce Experience (Optional)

While the Control Panel gives advanced customization, GeForce Experience can automatically optimize game settings. For beginners, it’s a great way to balance graphics and performance.

10: Benchmark and Test

After applying settings:

• Run 3DMark or Unigine Heaven to test performance.
• Monitor temps using MSI Afterburner.
• Adjust if overheating or throttling occurs.

Practical Tips for RTX 5070 Owners

• Pair with a high refresh rate monitor (144Hz+).
• Use NVENC Encoder for streaming – RTX 5070 has advanced AV1 encoding.
• If using VR, tweak per-game settings to ensure stable FPS.

Final Thoughts

The NVIDIA GeForce RTX 5070 is a powerhouse GPU, but only when fine-tuned to match your needs. By following the above steps, you’ll strike the right balance between smooth frame rates, vibrant visuals, and efficient power usage. Whether you’re an esports competitor or a AAA single-player adventurer, these settings ensure your GPU performs at its best.
